Binary Search

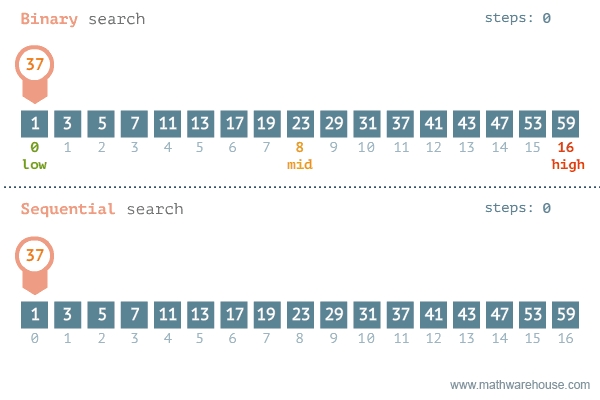

In a nutshell, this search algorithm takes advantage of a collection of elements that is already sorted by ignoring half of the elements after just one comparison.
Pseudo Code Algorithm:

Recursive Binary Search
# Python 3 program for recursive binary search.
# Modifications needed for the older Python 2 are found in comments.
# Returns index of x in arr if present, else -1
def binary_search(arr, low, high, x):
# Check base case
if high >= low:
mid = (high + low) // 2
# If element is present at the middle itself
if arr[mid] == x:
return mid
# If element is smaller than mid, then it can only
# be present in left subarray
elif arr[mid] > x:
return binary_search(arr, low, mid - 1, x)
# Else the element can only be present in right subarray
else:
return binary_search(arr, mid + 1, high, x)
else:
# Element is not present in the array
return -1
# Test array
arr = [ 2, 3, 4, 10, 40 ]
x = 10
# Function call
result = binary_search(arr, 0, len(arr)-1, x)
if result != -1:
print("Element is present at index", str(result))
else:
print("Element is not present in array")
Itterative Binary Search:
# Iterative Binary Search Function
# It returns index of x in given array arr if present,
# else returns -1
def binary_search(arr, x):
low = 0
high = len(arr) - 1
mid = 0
while low <= high:
mid = (high + low) // 2
# If x is greater, ignore left half
if arr[mid] < x:
low = mid + 1
# If x is smaller, ignore right half
elif arr[mid] > x:
high = mid - 1
# means x is present at mid
else:
return mid
# If we reach here, then the element was not present
return -1
# Test array
arr = [ 2, 3, 4, 10, 40 ]
x = 10
# Function call
result = binary_search(arr, x)
if result != -1:
print("Element is present at index", str(result))
else:
print("Element is not present in array")
# Uses python3
import random
"""You're going to write a binary search function.
You should use an iterative approach - meaning
using loops.
Your function should take two inputs:
a Python list to search through, and the value
you're searching for.
Assume the list only has distinct elements,
meaning there are no repeated values, and
elements are in a strictly increasing order.
Return the index of value, or -1 if the value
doesn't exist in the list."""
def binary_search(input_array, value):
test_array = input_array
current_index = len(input_array)//2
input_index = current_index
found_value = test_array[current_index]
while(len(test_array)>1 and found_value!=value):
if(found_value<value):
test_array = test_array[current_index:]
current_index = len(test_array)//2
input_index += current_index
found_value = input_array[input_index]
else:
test_array = test_array[0:current_index]
current_index = len(test_array)//2
# divmod needed to be used instead of round() since the behavior
# for .5 changed from rounding up to rounding down in Python 3
q, r = divmod(len(test_array), 2.0)
input_index = int(input_index - q - r)
found_value = input_array[input_index]
else:
if(found_value==value):
return input_index
return -1
def linear_search(a, x):
for i in range(len(a)):
if a[i] == x:
return i
return -1
# compare naive algorithm linear search vs. binary search results
def stress_test(n, m):
test_cond = True
while(test_cond):
a = []
for i in range(n):
a.append(random.randint(0, 10**9))
a.sort()
for i in range(m):
b = random.randint(0, n-1)
print([linear_search(a, a[b]), binary_search(a, a[b])])
# stops if the searches do not give identical answers
if(linear_search(a, a[b]) != binary_search(a, a[b])):
test_cond = False
print('broke here!')
break
stress_test(100, 100000)
#test_list = [1,3,9,11,15,19,29, 35, 36, 37]
#test_val1 = 25
#test_val2 = 15
#print(binary_search(test_list, test_val1))
#print(binary_search(test_list, test_val2))
#print(binary_search(test_list, 11))
# given array a and need to find value x
# left and right correspond to initial indices of array a bounding the search
# segment of array a above and below, respectively
def binary_search_recursive(a, x, left=0, right=(len(a)-1)):
"""Recursive Binary Search algorithm implemented using list indexing"""
index = (left+right)//2
if a[index]==x:
return index
elif x>(a[right]) or x<a[left]: # first case where x is not in the list!
return -1
elif left==right: # case where search is complete and no value x not found
return -1
elif left==right-1: # case where there are only two numbers left, check both!
left = right
return binary_search_recursive(a, x, left, right)
elif a[index]<x:
left = index
return binary_search_recursive(a, x, left, right)
elif a[index]>x:
right = index
return binary_search_recursive(a, x, left, right)
Binary Search Recursive:
def binarySearch(arr, searchValue):
low = 0
high = len(arr) - 1
while low <= high:
mid = (low + high) // 2
if arr[mid] < searchValue:
low = mid + 1
elif arr[mid] > searchValue:
high = mid - 1
else:
return True
return False
def binarySearchRec(arr, search_value):
if len(arr) == 0:
return False
"""
Given an array where elements are sorted in ascending order,
convert it to a height balanced BST.
"""
class TreeNode(object):
def __init__(self, x):
self.val = x
self.left = None
self.right = None
def array_to_bst(nums):
if not nums:
return None
mid = len(nums) // 2
node = TreeNode(nums[mid])
node.left = array_to_bst(nums[:mid])
node.right = array_to_bst(nums[mid + 1 :])
return node
"""
Implement Binary Search Tree. It has method:
1. Insert
2. Search
3. Size
4. Traversal (Preorder, Inorder, Postorder)
"""
import unittest
class Node(object):
def __init__(self, data):
self.data = data
self.left = None
self.right = None
class BST(object):
def __init__(self):
self.root = None
def get_root(self):
return self.root
"""
Get the number of elements
Using recursion. Complexity O(logN)
"""
def size(self):
return self.recur_size(self.root)
def recur_size(self, root):
if root is None:
return 0
else:
return 1 + self.recur_size(root.left) + self.recur_size(root.right)
"""
Search data in bst
Using recursion. Complexity O(logN)
"""
def search(self, data):
return self.recur_search(self.root, data)
def recur_search(self, root, data):
if root is None:
return False
if root.data == data:
return True
elif data > root.data: # Go to right root
return self.recur_search(root.right, data)
else: # Go to left root
return self.recur_search(root.left, data)
"""
Insert data in bst
Using recursion. Complexity O(logN)
"""
def insert(self, data):
if self.root:
return self.recur_insert(self.root, data)
else:
self.root = Node(data)
return True
def recur_insert(self, root, data):
if root.data == data: # The data is already there
return False
elif data < root.data: # Go to left root
if root.left: # If left root is a node
return self.recur_insert(root.left, data)
else: # left root is a None
root.left = Node(data)
return True
else: # Go to right root
if root.right: # If right root is a node
return self.recur_insert(root.right, data)
else:
root.right = Node(data)
return True
"""
Preorder, Postorder, Inorder traversal bst
"""
def preorder(self, root):
if root:
print(str(root.data), end=" ")
self.preorder(root.left)
self.preorder(root.right)
def inorder(self, root):
if root:
self.inorder(root.left)
print(str(root.data), end=" ")
self.inorder(root.right)
def postorder(self, root):
if root:
self.postorder(root.left)
self.postorder(root.right)
print(str(root.data), end=" ")
"""
The tree is created for testing:
10
/ \
6 15
/ \ / \
4 9 12 24
/ / \
7 20 30
/
18
"""
class TestSuite(unittest.TestCase):
def setUp(self):
self.tree = BST()
self.tree.insert(10)
self.tree.insert(15)
self.tree.insert(6)
self.tree.insert(4)
self.tree.insert(9)
self.tree.insert(12)
self.tree.insert(24)
self.tree.insert(7)
self.tree.insert(20)
self.tree.insert(30)
self.tree.insert(18)
def test_search(self):
self.assertTrue(self.tree.search(24))
self.assertFalse(self.tree.search(50))
def test_size(self):
self.assertEqual(11, self.tree.size())
if __name__ == "__main__":
unittest.main()
Delete Node
"""
Given a root node reference of a BST and a key, delete the node with the given key in the BST. Return the root node reference (possibly updated) of the BST.
Basically, the deletion can be divided into two stages:
Search for a node to remove.
If the node is found, delete the node.
Note: Time complexity should be O(height of tree).
Example:
root = [5,3,6,2,4,null,7]
key = 3
5
/ \
3 6
/ \ \
2 4 7
Given key to delete is 3. So we find the node with value 3 and delete it.
One valid answer is [5,4,6,2,null,null,7], shown in the following BST.
5
/ \
4 6
/ \
2 7
Another valid answer is [5,2,6,null,4,null,7].
5
/ \
2 6
\ \
4 7
"""
class Solution(object):
def delete_node(self, root, key):
"""
:type root: TreeNode
:type key: int
:rtype: TreeNode
"""
if not root:
return None
if root.val == key:
if root.left:
# Find the right most leaf of the left sub-tree
left_right_most = root.left
while left_right_most.right:
left_right_most = left_right_most.right
# Attach right child to the right of that leaf
left_right_most.right = root.right
# Return left child instead of root, a.k.a delete root
return root.left
else:
return root.right
# If left or right child got deleted, the returned root is the child of the deleted node.
elif root.val > key:
root.left = self.deleteNode(root.left, key)
else:
root.right = self.deleteNode(root.right, key)
return root
Another:
def binary_search(arr, x):
start= 0
end = len(arr) - 1
mid = 0
while start<= end:
mid = (start+ end) // 2
# If x is greater, search in right array
if arr[mid] < x:
start = mid + 1
# If x is smaller, search in left array
elif arr[mid] > x:
end= mid - 1
# if x is present at mid
else:
return mid
# when we reach at the end of array, then the element was not present
return -1
arr = [ ]
n=int(input("Enter size of array : "))
print("Enter array elements : ")
for i in range(n):
e=int(input())
arr.append(e)
x = int(input("Enter element to search "))
ans = binary_search(arr, x)
if(ans==-1):
print("Element not found")
else:
print("Element found at ",ans)
